ISO4406 Portable Liquid Particle Counter
Brand KN
Product origin Dalian,China
Delivery time deliver as soon as received payment
Supply capacity 30 sets one month
Portable Liquid Particle Counter is not only suitable for on-site testing, but also can be used as a laboratory analysis instrument. The instrument uses the light extinguishing principle to measure the size and count of fine particulate contaminants in liquid media. KN-4406B uses high-pressure and low-pressure interface, and precision syringe pump, strictly control the sampling volume accuracy. It can conduct off-line or on-line testing of oil of low viscosity or high viscosity

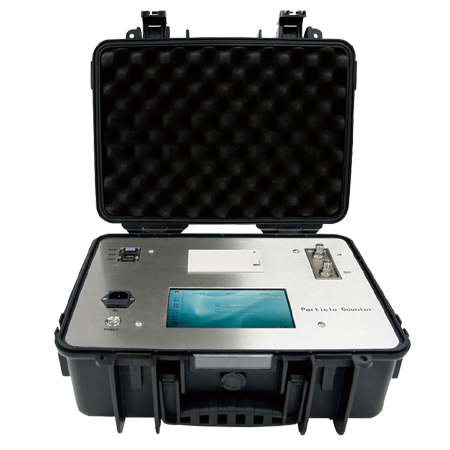

KN-4406P Portable Liquid Particle Counter
Overview
KN-4406P Portable Liquid Particle Counter is designed based on the principle of light blockage method, which is specially used for fast detection of oil contamination level on site. It has the advantages of small volume, light weight, fast detection speed, high precision, good repeatability, and can work under extremely harsh conditions such as high temperature and high pressure. Built-in micro water sensor and temperature sensor, so it can detect water content and temperature as well as pollution degree in oil. It can be widely used in aerospace, petrochemical, transportation ports, iron and steel metallurgy, automobile manufacturing and other fields of hydraulic oil, lubricating oil, transformer oil (insulation oil), turbine oil, gear oil, engine oil and other oil detection.
Features
The principle of light resistance (shading) method testing specified by the International Hydraulic Standards Committee
High precision laser sensor, with a wide testing range, stable performance, low noise, and high resolution
High precision bidirectional plunger pump sampling method, adjustable injection speed, high sampling volume accuracy
The pipeline is made of 316L and PTFE materials, which are corrosion-resistant and meet the testing requirements for various samples and negative pressure degassing of samples
Multiple sampling containers such as standard sampling bottles and cups can be used, or directly connected to hydraulic systems for online testing to meet the testing requirements of different industries
Built in multiple calibration curves, compatible with all commonly used domestic and international standards for calibration
Can perform automatic calibration, manual calibration and half counting calibration
Built in more than ten commonly used standards including: GJB-420A, GJB-420B, NAS1638, GB/T14039, ISO4406, SAE4059CPC, SAE4059F, SAE749D, ГOCT17216, QC/T29104, JB/T9737, DLT432, HH005-2018, ASTM D7619, etc. Can provide data results for all built-in standards in one test
Support custom standard testing and can set up 64 detection channels simultaneously according to customer needs
1000 particle size channels can be set up for particle size analysis
Built in data analysis system, capable of automatically determining sample grade based on standards, with data processing and printing function
7-inch color touch screen operation, with preset, input, modification, storage, upload functions, easy and fast operation
Multiple user login accounts can be set arbitrarily, and new users can be added, permissions can be set, and old users can be deleted
Equipped with RS232 interface, it can be connected to a computer or laboratory platform for data processing, and can also use USB for data storage
Built in lithium battery, suitable for field work, can be used without external power supply
Embedded design, high-strength casing, easy to carry, stuibale for various types of construction machinery
Technical parameters
Light Source: Semiconductor laser
Detection Channel: 64, arbitrarily set particle size
Resolution＜6%
Counting Accuracy＜5%
Sample Volume: 0.2~1000ml
Sampling Accuracy＜0.5%
Sampling Speed: 5~80ml/min
Cleaning Volume: Set between 0~90ml
Cleaning Speed: 5~80ml/min
Repeatability: RSD＜2%
Limit Coincidence Error: 12000~40000 particles/ml
Operating Temperature: -20~60℃
Detect Sample Temperature: 0~80℃
Power Supply: AC100~240V, 50/60Hz
Battery Capacity: 5200mAh
Battery Running Time: 6~8h
Screen Size: 7-inch
Weight: 9kg
Dimension: 420*326*182mm
Temperature Acquisition (optional): -40~100℃ and accuracy±0.5℃
Moisture (Optional): Water Activity Collection: 0~1aw, accuracy±0.03aw
Absolute Moisture Content: 1~360ppm, accuracy±10ppm
Viscosity (Optional):0~500cSt, Accuracy±2%
Test Sample Viscosity: ≤100cst (optional pneumatic bottle sampler with a maximum viscosity of 400cSt)
Pressure Range: Lower pressure 0~0.6Mpa, high pressure up to 42MPa (Optional pressure reducing valve)
Particle Size Range: 0.8~600um (calibrated according to ACFTD range from 1~100um or ISO MTD ranging from 4~70um(c))
