Manual Four Ball Wear Tester
Brand KN
Product origin Dalian,China
Delivery time deliver as soon as received payment
Supply capacity 30 sets one month
The four-ball wear-test method can be used to determine the relative wear-preventing properties of greases under the test conditions and if the test conditions are changed the relative ratings may be different. No correlation has been established between the four-ball wear test and field service. The test method cannot be used to differentiate between Extreme Pressure (EP) and Non-Extreme Pressure (Non-EP) Greases.

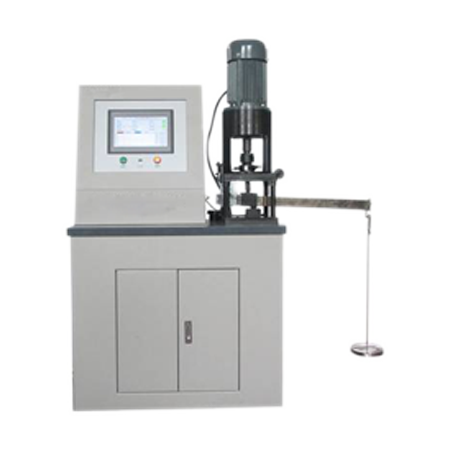

KN-2783 Manual Four ball Wear Tester
Overview
KN-2783 Manual Four ball wear tester is used to test the Wear Preventive (WP) and Extreme Pressure (EP) characteristics of greases and lubricating oils in sliding steel-on-steel applications. It conforms to the ASTM D2783, ASTM D2266 and ASTM D4172 Standard Test Method for Wear Preventive Characteristics of Lubricating Fluid (Four-Ball Method).The tester adopts sliding friction, under the high point contact pressure, to evaluate the carrying capacity of the lubricant. It includes the maximum nonseizure load PB, sintering load PD and composite wear value ZMZ three items indexes. The tested is also used for the long-time abrasion resistance tests, to measure the friction coefficient.
Features
1.Large screen panel operation.
2.Equiped with tool cabinet.
Technical parameters
1.Test force range (stepless): 60N-10kN
2.Test force display value relative error: ±1%
3.Test force long-time-kept value error: ±1% F.S
4.Friction force measurement range: 0-300N
5.Friction force measurement error: ±3%
6.Main axis rotate speed range (stepless): 200-2000r/min
7.Main axis rotate speed range error: ±10 r/min
8.Friction pair temperature controlling range: room temperature-200℃
9.Friction pair temperature controlling error: ±2℃
10.Test time controlling range: 1 s-99 h
11.Main axis rotate speed controlling range: 1-9999999 r
12.Net weight: About 400kg
13.Test steel ball: Φ12.7mm
