ASTM D97 Full Automatic Pour Point Tester

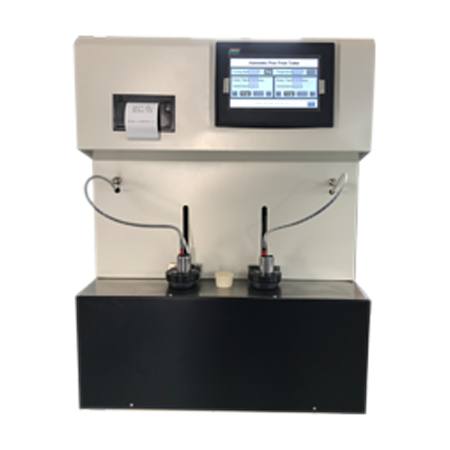

KN-97Z Full Automatic Pour Point Tester

Overview

KN-97Z Full Automatic Pour Point Tester conforms to ASTM D97 Standard Test Method for Pour Point of Petroleum Products. The pour point of a petroleum specimen is an index of the lowest temperature of its utility for certain applications. It is suitable for testing the pour point of dark oil products, crude oil and other transparent or semitransparent petroleum products.

Features

1. 7 inch touch screen operation with good human-computer communication

2. German Danfoss compressor cooling with fast cooling speed and stable performance

3. Imported photoelectric sensor for detect the sample fluidity accurately, result is reliable

4. Imported high precision temperature controlling module equipped with high grade temperature sensor, it features accurate temperature measurement and small error

5. Rotational structure design makes the working operating floor simple and attractive

6. Two sample stations, be able to do two tests simultaneously

7. Main host adopts micro processor control. Automatic cooling, lifting test tubes, rotating, testing the fluidity, identifying results, recording, printing and stopping after the test

Technical Parameters

1. Applicable standard: ASTM D97

2. Temperature range: Ambient ~ -70 ℃

3. Temperature accuracy: ±0.1 ℃

4. Cooling mode: Imported compound compressor

5. Detection mode: photoelectric sensor

6. Cooling rate: 17 ℃ /300s

7. Test unit: 2
