ASTM D1655 Fully Automatic Low-Temperature Kinematic Viscometer

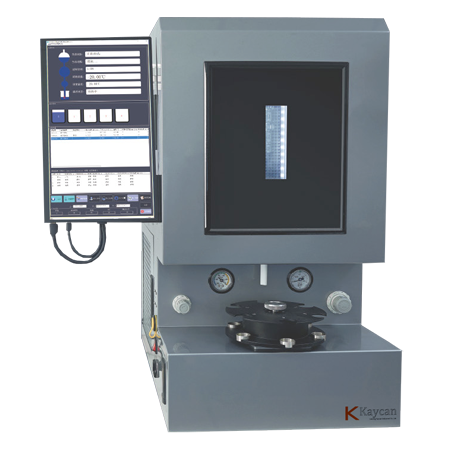

KN-1655 Fully Automatic Low-Temperature Kinematic Viscometer

Overview

KN-1655 Fully Automatic Low-Temperature Kinematic Viscometer conforms the ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids (and Calculation of Dynamic Viscosity). It is used to test the of liquid petroleum products, both transparent and opaque, by measuring the time for a volume of liquid to flow under gravity through a calibrated glass capillary viscometer. The dynamic viscosity, η, can be obtained by multiplying the kinematic viscosity, ν, by the density, ρ, of the liquid. Under certain constant temperature. The range of kinematic viscosities covered by this apparatus method is from 0.2 to 300 000 mm2/s at all temperatures

Applicable Standard

ASTM D445, ASTM D446, ASTM D1655, ISO 3104, ISO 3105, DEF STAN 91:91, IP71

Features

1. Design Philosophy with Advanced Technology

2. The instrument adopts ISKvator™ technology, enabling fully automatic sampling, temperature control, viscosity testing, cleaning, and drying of the viscometer without the need for constant operator attendance.

3. Kinematic viscosity measurement range: 1~3000 cSt.

4. Particularly suitable for the determination of jet fuel kinematic viscosity at -20°C according to methods ASTM D1655 and DEF STAN 91:91.

5. Onboard computer with a 15.6-inch color touchscreen for control, capable of independent operation, pre-programming, and test parameter setting without an external computer.

6. Advanced NTC thermistor measurement technology ensures testing is unaffected by sample color or ambient light, allowing testing of transparent, dark, and opaque petroleum products with the same accuracy.

7. Proprietary modified Ubbelohde capillary viscometers, each with a 100-fold testing range.

8. Dual-solvent cleaning system with user-programmable cleaning procedures.

9. Automatic warm-back cleaning technology.

10. Corrosion-resistant design, compatible with most corrosive cleaning agents.

11. Uses dry air to blow-dry the viscometer tube, ensuring test accuracy.

12. User-friendly Windows-based operating interface, automatically monitors the entire testing process, enabling 24-hour fully automatic uninterrupted operation.

13. Software features temperature calibration and viscometer tube calibration functions.

14. 6-position automatic sample tray; after software registration and sorting, continuous fully automatic testing can proceed unattended, with queue-jumping priority testing also available.

15. Testing and cleaning modes in the software can be differentially programmed and modified based on the characteristics of the test oil samples to meet personalized testing needs.

16. Real-time test data recording for easy browsing of results and querying of historical data.

17. Multi-level user management with configurable permissions.

18. Capable of connecting to a LIMS system for data transfer.

19. ASTM compliant, cost-effective, easily performing automatic low-temperature kinematic viscosity measurements.

20. Requires only approximately 13~15ml of test oil sample.

21. Transparent oil suction nozzle protective cover uses a snap-on installation for easy regular cleaning of sampling residue.

22. Integrated, standalone design, no need to connect an external chiller.

23. Built-in drying unit ensures cleanliness and dryness of the viscometer tube after cleaning, eliminating common low-temperature moisture issues and improving test result reliability.

24. Compact benchtop design saves space, time, and costs.

Technical parameters

1. Temperature Control Range: -40°C ~ +20°C

2. Temperature Control Accuracy: ±0.02°C

3. Timing Accuracy: 0.01s

4. Automatic Sampling: 6 bits automatic sample tray

5. Sample Volume: 13~15mL

6. Bath Volume: 2L

7. Cooling Method: Compressor refrigeration

8. Bath Medium: Low-temperature silicone oil

9. Viscosity Test Range: 1~3000 mm²/s (by selecting different capillary viscometers)

10. Test Accuracy: Meets or exceeds the level specified by ASTM D445

11. Capillary Viscometer: Modified Ubbelohde Viscometer

• Safety Features

• Cleaning fluid shortage alert

• Bath over-temperature protection

• High/Low liquid level protection

12. Communication Interface: USB port, RJ45 port

13. Data Output: LIMS or printer

14. Power Consumption≤1000W

15. Operating Environment

• Temperature: 5°C~35°C

• Humidity: 20~90% RH at 35°C, non-condensing

16. Power Supply: AC 220V ±10%, 50/60Hz

17. Dimensions: 660mm (W) × 620mm (D) × 790mm (H)

18. Net Weight: 82 KG (includes the bath medium)
